德國ALLFA 尼龍緊固系列

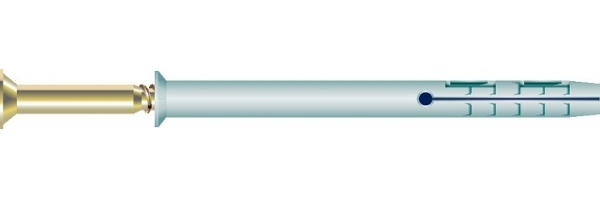

22849 Series 門框螺絲
- Consists of a nylon plug with countersunk head and a pozidriv screw, yellow zinc plated.
- Suitable for fixings on concrete, bricks and other high-density material.
- Temperature resistance: from -40˚Celsius to +80˚Celsius
| Item No. | Dimension | Drill | Fixture Thickness | Pieces per | Pull-out results in following building materials kN: | |||
| Φ x Lmm | mm | mm | Box | Cartion | Concrete B25 | Bricks MZ20 |
Sand lime full brick KSV20 |
|
| 2284910080 | 10 x 80 | 10 | 30 | 50 | 500 | 4.4 | 3.9 | 3.9 |
| 2284910100 | 10 x 100 | 10 | 50 | 50 | 500 | 4.4 | 3.9 | 3.9 |
| 2284910120 | 10 x 120 | 10 | 70 | 50 | 500 | 4.4 | 3.9 | 3.9 |
| 2284910140 | 10 x 140 | 10 | 90 | 50 | 500 | 4.4 | 3.9 | 3.9 |
| 2284910160 | 10 x 160 | 10 | 110 | 50 | 500 | 4.4 | 3.9 | 3.9 |
| 2284910180 | 10 x 180 | 10 | 130 | 50 | 500 | 4.4 | 3.9 | 3.9 |
Recommended security coefficient: 5
