德國ALLFA 尼龍緊固系列

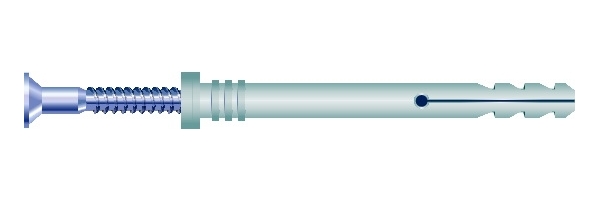

22340 Series 尼龍套螺釘 (A2不銹鋼)
- Consists of a nylon plug with cylindrical head and a pozidriv nail-screw, stainless steel A2.
- Suitable for outdoor and wet-room fixings on concrete, bricks and other high-density material.
- Temperature resistance: from -40˚Celsius to +80˚Celsius
| Item No. | Dimension | Drill | Future Thickness | Pieces per | Min. Drill | Pull-out results in following building materials kN: | |||
| Φ x Lmm | Φmm | Φmm | Box | Cartion | Depth / mm | Concrete B25 | Bricks MZ20 |
Sand lime full brick KSV20 |
|
| 2234005050 | 5 x 50 | 5 | 30 | 200 | 2,000 | 30 | 1.2 | 1.1 | 1.0 |
| 2234005060 | 5 x 60 | 5 | 40 | 200 | 2,000 | 30 | 1.2 | 1.1 | 1.0 |
| 2234006030 | 6 x 30 | 6 | 5 | 200 | 2,000 | 35 | 1.4 | 1.3 | 1.1 |
| 2234006040 | 6 x 40 | 6 | 15 | 200 | 2,000 | 35 | 1.4 | 1.3 | 1.1 |
| 2234006050 | 6 x 50 | 6 | 25 | 200 | 2,000 | 35 | 1.4 | 1.3 | 1.1 |
| 2234006060 | 6 x 60 | 6 | 35 | 200 | 2,000 | 35 | 1.4 | 1.3 | 1.1 |
| 2234006080 | 6 x 80 | 6 | 55 | 200 | 2,000 | 35 | 1.4 | 1.3 | 1.1 |
| 2234008060 | 8 x 60 | 8 | 20 | 100 | 1,000 | 50 | 2.1 | 1.9 | 1.7 |
| 2234008080 | 8 x 80 | 8 | 40 | 100 | 1,000 | 50 | 2.1 | 1.9 | 1.7 |
| 2234008100 | 8 x 100 | 8 | 60 | 100 | 1,000 | 50 | 2.1 | 1.9 | 1.7 |
