JAM 緊固系列 (拉爆螺絲)

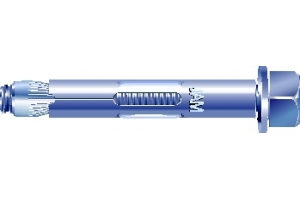

JAM-SH 套筒拉脹式膨脹螺絲 (電鍍鋅層)
Application
• installing pipe bracket, trucking, cable tray and suspended ceilings. Light to medium metalwork, hand rails, signs and gates etc.
Base material
• concrete, brick, masonry and hollow brick (Concrete fcc -30N/mm2)

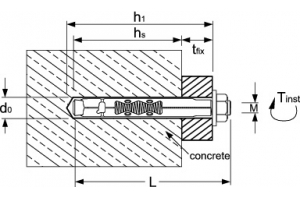

| Item No. | Description |
Hole Diameter do (mm) |
Thread Size x L (mm) |
Min. Hole Depth hs (mm) |
Tightening Torqure Tinst (Nm) |
Fixture Thickness tfix (mm) |
Base Material Thickness (mm) |
Recommended Tensile Load (kN) |
Recommended Shear Load (kN) |
| 2010206045 | SH8 X 45 | 8 | M6 X 49 | 38 | 10 | 7 | 100 | 2.8 | 3.5 |
| 2010206060 | SH8 X 60 | 8 | M6 X 64 | 38 | 10 | 22 | 100 | 2.8 | 3.5 |
| 2010208060 | SH10 X60 | 10 | M8 X 66 | 44 | 25 | 16 | 120 | 4.0 | 4.8 |
| 2010208085 | SH10 X 85 | 10 |
M8 X 91 |
44 | 25 | 41 | 120 | 4.0 | 4.8 |
| 2010208110 | SH10 X110 | 10 | M8 X 110 | 44 | 25 | 66 | 120 | 4.0 | 4.8 |
| 2010210065 | SH12 X 65 | 12 | M10 X 71 | 56 | 40 | 9 | 120 | 5.9 | 7.8 |
| 2010210080 | SH12 X 80 | 12 | M10 X 86 | 56 | 40 | 24 | 150 | 5.9 | 7.8 |
| 2010210110 | SH12 X110 | 12 | M10 X116 | 56 | 40 | 54 | 200 | 5.9 | 7.8 |
| 2010212110 | SH16 X110 | 16 | M12 X116 | 55 | 70 | 55 | 200 | 8.3 | 9.5 |
Installation of JAM-SH Sleeve Anchor
1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Push anchor carefully with hand into hole until nut and washer are flush with fixture.
4. Tighten with the wrench to the recommended torque value.
