JAM 緊固系列 (拉爆螺絲)

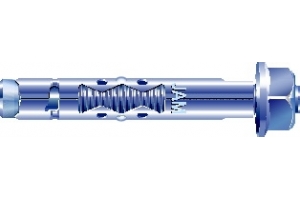

JAM-S 套筒拉脹式膨脹螺絲
Application
• installing pipe bracket, trucking, cable tray and suspended ceilings. Light to medium metalwork, hand rails, signs and gates etc.
Base material
• concrete, brick, masonry and hollow brick (Concrete fcc -30N/mm2)
|
Item No. |
Description |
Hole Diameter d0 x h1 (mm) |
Thread Size x L (mm) |
Min. Hole Depth hS (mm) |
Tightening Torque Tinst (Nm) |
Fixture Thickness tfix (mm) |
Base Material Thickness (mm) |
Tensile Load (kN) |
Shear Load (kN) |
| 2010106040 | S 8 x 40 |
8 |
M6 x47 |
28 |
8 | 12 | 80 | 1.9 |
3.0 |
| 2010108050 | S 10 x 50 |
10 |
M8 x 60 |
32 |
25 |
18 |
100 |
3.8 | 4.4 |
| 2010110060 | S 12 x 16 |
12 |
M10 x 69 |
38 |
40 |
2 |
120 |
5.5 | 7.2 |
| 2010110075 | S 12 x 75 |
12 |
M10 x 84 |
38 |
40 |
37 |
150 |
5.5 |
7.2 |

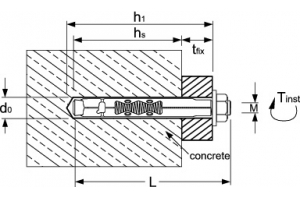

Installation of JAM-S, JAM-SH Sleeve Anchor
1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Push anchor carefully with hand into hole until nut and washer are flush with fixture.
4. Tighten with the wrench to the recommended torque value.
