JAM 緊固系列 (拉爆螺絲)

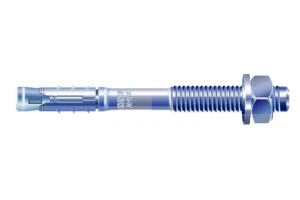

JAM-W 拉脹式膨脹螺絲 (電鍍鋅層/熱浸鍍鋅)

電鍍鋅層/熱浸鍍鋅

Features
• dependable, economical anchor, externally threaded
• efficient through fixing, torque controlled expansion


Application
• high racking, safety barriers, hand rails, channels, brackets, cable trays, ducts and suspended ceilings


Base material
• concrete
(Non-cracked concrete fcc = 30N/mm2)



















Recommended Load *

Item No.

(Zinc Plated)

Item No.

(Hot Dip Galvanized)

Description

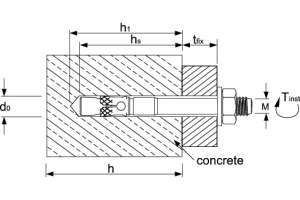

Bore x Hole Depth

d0 x h1

(mm)

Setting Depth

hs (mm)

Tightening Torque

Tinst (Nm)

Fixture Thickness

tfix (mm)

Base Material

Thickness

h (mm)

Tensile Load

(kN)

Shear Load

(kN)

 2000106050  -

W M6-

5/50

6 x 45 36 8 5 100 1.78 2.54
 2000106065  - W M6-10/65 6 x 55 46 8 10 100 2.90 2.54
 2000108060  2000308060

W M8-

5/60

8 x 55 45 15 5 100 3.13 5.55
 2000108075  2000308075 W M8-10/75 8 x 65 55 15 10 100 4.67 5.55
 2000108090  2000308090 W M8-25/90 8 x 65 55 15 25 100 4.67 5.55
 2000108110  2000308110 W M8-45/110 8 x 65 55 15 45 100 4.67 5.55
 2000110070  2000310070 W M10-10/70 10 x 60 48 30 10 100 4.01 7.86
 2000110090  2000310090 W M10-20/90 10 x 70 58 30 20 100 5.86 7.86
 2000110100  2000310100 W M10-30/100 10 x 70 58 30 30 100 5.86 7.86
 2000110110  2000310110 W M10-40/110 10 x 70 58 30 40 100 5.86 7.86
 2000110120  2000310120 W M 10-50/120 10 x 70 58 30 50 100 5.86 7.86
 2000112075  2000312075 W M12-5/75 12 x 65 55 50 5 100 4.68 11.00
 2000112090  2000312090 W M12-5/90 12 x 80 70 50 5 120 7.58 11.00
 2000112105  2000312105 W M12-10/105 12 x 90 80 50 10 150 9.90 11.00
 2000112120  2000312120 W M12-25/120 12 x 90 80 50 25 150 9.90 11.00
 2000112170  2000312170 W M12-75/170 12 x 90 80 50 75 150 9.90 11.00
 2000116100  2000316100 W M16-5/100 16 x 90 75 100 5 150 9.40 19.00
 2000116120  2000316120 W M16-5/120 16 x 110 95 100 5 150 15.11 19.00
 2000116140  2000316140 W M16-25/140 16 x 110 95 100 25 180 15.11 19.00
 2000116215  2000316215 W M16-100/215 16 x 110 95 100 100 180 15.11 19.00
 20000120170  2000320170 W M20-30/170 20 x 130 115 200 30 220 19.50 19.99

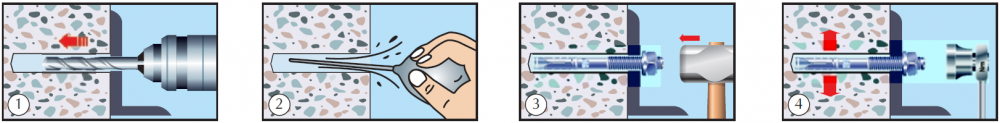

Installation of JAM-W Steel Wedge Anchor



1. Drill to specified diameter and depth.

2. Clean the hole with blow-out bulb.
3. Drive anchor carefully with hammer into hole until nut and washer are flush with fixture.
4. Tighten with the torque wrench to the recommended torque value.
