| 分類 | 種類 |
JAM 螺絲系列

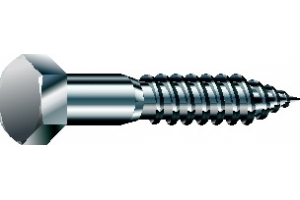

木牙螺絲
Ordering example : A2-70 stainless steel M8 x 40mm hex head wood screw (item no.: 5006408040)
| 規格 | DIN571 |
|---|---|
| 原料 (產品編號) | zinc plated (50014) A2-70 (50064) |
|
d (diameter) L (length) / mm |
M6 | M8 | M10 | M12 | M16 | M20 |
| 25 | 06025 | - | - | - | - | - |
| 35 | 06035 | 08035 | - | - | - | - |
| 40 | 06040 | 08040 | 10040 | 12040 | - | - |
| 50 | 06050 | 08050 | 10050 | 12050 | - | - |
| 65 | 06065 | 08065 | 10065 | 12065 | - | - |
| 75 | 06075 | 08075 | 10075 | 12075 | - | - |
| 90 | - | - | 10090 | 12090 | 16090 | - |
| 100 | - | - | 10100 | 12100 | 16100 | 20100 |
| 125 | - | - | - | 12125 | 16125 | 20125 |
| 150 | - | - | - | - | 16150 | 20150 |
Special sizes and other standards on request
