JAM 螺絲系列

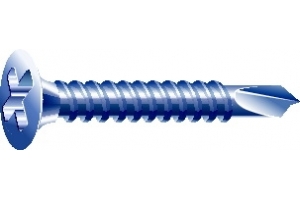

鑽尾喇叭頭自攻螺絲 (電鍍鋅層)

Ordering example : zinc plated M4.2 x 25mm philips bugle head self-drilling screw (item no.: 5031008025)
C1022 Steel
後期加工 zinc plated (50310)

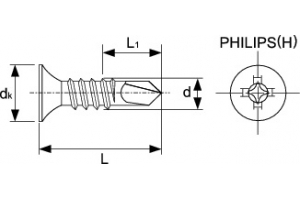

    • d (diameter) Self-Drilling Screw
    • Thread Pitch / mm
    • dk (outer head width) / mm
    • L1 / mm
    • Nr. acc. to ISO
    • Nr. Philips (H) recess
    • M3.5
    • 1.3
    • 8.3
    • 5
    • #6
    • 2
    • 1.4
    • 8.3
    • 7
    • #8
    • 2
    • M4.8
    • 1.6
    • 9.4
    • 8
    • #10
    • 2
    • M5.5
    • 1.8
    • 10.6
    • 10
    • #12
    • 3

d (diameter)

L (length) / mm

 M3.5 M4.2 M4.8 M5.5
16 06016 08016 10016 -
19 06019 08019 10019 12019
25 06025 08025 10025 12025
32 06032 08032 10032 12032
38 06038 08038 10038 12038



Special sizes and other standards on request
