JAM 螺絲系列

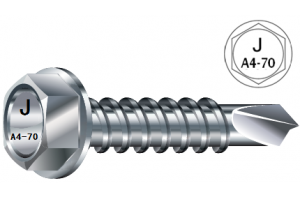

316 (A4-70) 不銹鋼六角頭複合金屬自攻螺絲

Ordering example: 316 stainless steel bi-metal #5 hex washer head self-drilling screw #6.3 x 38mm (item no.:5009514038)
雙金屬 316 (A4-70)不銹鋼主體 +碳鋼鑽頭點

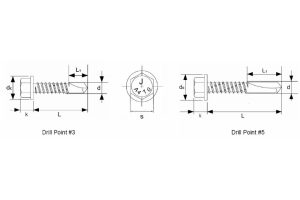

規格 DIN 7504K
原料 (產品編號) Steel / drill point #3 (50093) drill point #5 (50095)
    • d (diameter) 316 Bi-Metal
    • Thread Pitch / mm
    • dc (washer diameter) / mm
    • k (head thickness) / mm
    • s (width across flat) / mm
    • L1 / mm
    • L2 / mm
    • Nr. acc. to ISO
    • M5.5
    • 1.8
    • 10-11
    • 5.15-5.45
    • 7.78-8
    • 8-9
    • 15-16
    • #12
    • M6.3
    • 1.8
    • 12.2-13.2
    • 6.15-6.45
    • 9.78-10
    • 8-9
    • 15-16
    • #14



 Drill Point #3 Drill Point #5
M5.5 M6.3 M5.5 M6.3

Max. Screw Driver Speed / r.p.m.

Max. Drilling Capacity / mm

2500

6

1800

6

1800

12.5

1800

12.5



d (diameter)

L (length) / mm

 M5.5 M6.3
25 12025 14025
38

12038

 14038
50 12050 14050





Special sizes and other standards on request



Job Reference:
IIIA The Wings 天晉 3A (2016)
Grand Yoho (2016)
Park Yoho Sicilia (2016)
Park Yoho Venezia (2014)
