分類 種類
JAM 螺絲系列

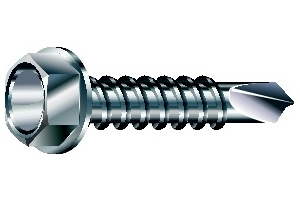

六角頭鑽尾自攻螺絲 (410 不銹鋼)

Ordering example : 410 stainless steel #12 x 25mm hex washer head self-drilling screw (item no.: 5000012025)
不銹鋼410
規格 DIN 7504K
原料 (產品編號) (50000)

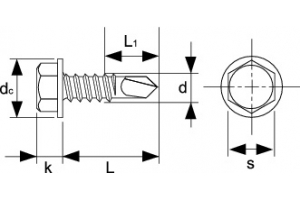

    • d (diameter) Self-Drilling Screw
    • d (diameter)
    • Thread Pitch / mm
    • dc (outer head width) / mm
    • k (max. head height) / mm
    • s (inner head width) / mm
    • L1 / mm
    • Nr. acc. to ISO
    • M4.8
    • M4.8
    • 1.6
    • 10.5
    • 4.45
    • 8
    • 8
    • #10
    • M5.5
    • M5.5
    • 1.8
    • 11
    • 5.45
    • 8
    • 10
    • #12
    • M6.3
    • M6.3
    • 1.8
    • 13.2
    • 6.45
    • 10
    • 11
    • #14

d (diameter)

L (length) / mm

 M4.8 M5.5 M6.3
16 10016  - -
19 10019 12019 14019
25 10025 12025 14025
35 10035 12035 14035
40  - 12040 14040
45  - 12045 14045
50  - 12050 14050



Special sizes and other standards on request
