JAM 螺絲系列

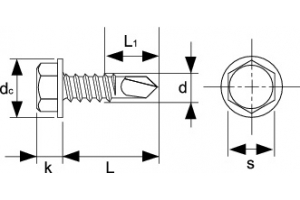

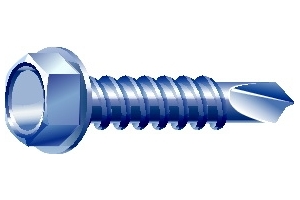

六角頭鑽尾自攻螺絲 (電鍍鋅層)

Zinc plated M5.5 x 25mm hex washer head self-drilling screw (item no:5001012025)
C1022 Steel
    • d (diameter) Self-Drilling Screw
    • d (diameter)
    • Thread Pitch / mm
    • dc (outer head width) / mm
    • k (max. head height) / mm
    • s (inner head width) / mm
    • L1 / mm
    • Nr. acc. to ISO
    • M4.2
    • M4.2
    • 1.4
    • 8.8
    • 4.25
    • 7
    • 7
    • #8
    • M4.8
    • M4.8
    • 1.6
    • 10.5
    • 4.45
    • 8
    • 8
    • #10
    • M5.5
    • M5.5
    • 1.8
    • 11
    • 5.45
    • 8
    • 10
    • #12
    • M6.3
    • M6.3
    • 1.8
    • 13.2
    • 6.45
    • 10
    • 11
    • #14

d(dimeter)

L(length) / mm

M4.2

M4.8

M5.5

M6.3
13 08013 10013 - -
16 08016 10016 - -
19 08019 10019 12019 14019
25 08025 10025 12025 14025
32 08032 10032 12032 14032
38 08038 10038 12038 14038
55 - - 12055 14055
75 - - 12075 14075
100 - - 12100 14100





























Special sizes and other standards on request
