Steel, zinc plated

With internal thread

Description

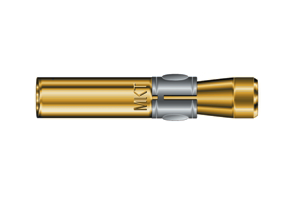

The Wedge Anchor B-IG is the internally threaded version of the
European approved Wedge Anchor B. It can be installed in normal
drill holes without a setting tool. Expansion is achieved by
tightening the screw. The fixture can easily be removed. Smaller
anchor spacings and edge distances than with drop-in anchors.

Applications
Medium duty anchorings where the use of an internal thread is
required and/or anchor spacings and edge distances are smaller
than those needed for drop-in anchors: suspensions, fastening of
flat steel structures, ducts, ventilation systems, railings.

Range of concrete quality: C20/25 - C50/60

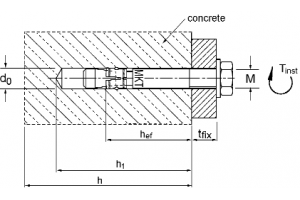

Installation of MKT B-IG Wedge Anchor

1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Install anchor using proper setting tool.
4. Install fixture and tighten anchor to specified torque. Refer to approval and listing for design and building code compliance.
