JAM U型鋼槽及配件系統

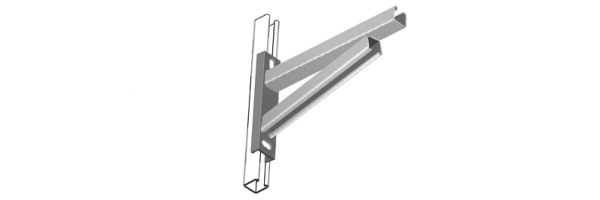

CA04 U型鋼槽
Ordering example : Hot dip galvanized CA01/150 Channel Arms (item no : 4001101150)
| 規格 | BS 1449 Part2:1983 |
|---|---|
| 規格 | BS 6946:1988 |
| 後期加工 | hot dip galvanized to ISO 1461:1999 |
| 原料 (產品編號) | 40014 |
|
No. |
A mm |
B mm |
C mm |
Recommended UDL Kgf for vertical channel DR41 |
Wt. each kg |
| CA04/750 | 760 | 270 | 608 | 460 | 4.63 |
| CA04/900 | 910 | 330 | 728 | 460 | 4.78 |
| CA04/1050 | 1060 | 380 | 848 | 460 | 5.67 |
Grade 304 & 316 Stainless Steel and special length available on request
Ordering example : Hot dip galvanized CA01/150 Channel Arms (item no : 4001101150)
