JAM U型鋼槽及配件系統

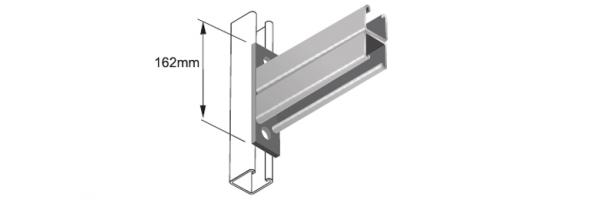

CA03 U型鋼槽
Ordering example : Hot dip galvanized CA01/150 Channel Arms (item no : 4001101150)
| 規格 | BS 1449 Part2:1983 |
|---|---|
| 規格 | BS 6946:1988 |
| 後期加工 | hot dip galvanized to ISO 1461:1999 |
| 原料 (產品編號) | 40013 |
|
No. |
A mm |
Recommended UDL Kgf for vertical channel DR41D |
Wt. each kg |
| CA03/300 | 310 | 609 | 2.13 |
| CA03/450 | 460 | 410 | 3.01 |
| CA03/600 | 610 | 309 | 3.72 |
| CA03/750 | 760 | 248 | 4.66 |
Grade 304 & 316 Stainless Steel and special length available on request
Ordering example : Hot dip galvanized CA01/150 Channel Arms (item no : 4001101150)
