MTR West Island Line- 703

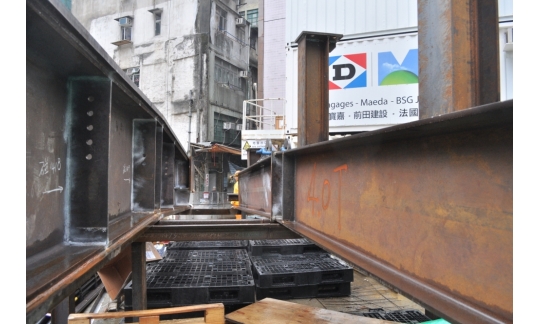

Sheung Wan-to-Sai Ying Pun Tunnel Construction

Main Contractor:

Dragages - Maeda - BSG Joint Venture

Products:

JAM Grade 8.8 M48 x 1500mm Threaded Rod (Hot Dip Galvanized) c/w
Class 10 Nut & Washer

JAM Grade 8.8 Threaded Rod (HDG) c/w class 8 Nut & Washer

M42 x 3000mm, M24 x 650mm, M22 x 150mm, M16 x 420mm, M16 x 350mm

JAM Grade 8.8 Hex. Bolts (Hot Dip Galvanized) :
c/w class 8 Nut, Flat Washer & Spring Washer
M20 x 60mm, M16 x 80mm, M10 x 25mm

JAM Grade 8.8 Hex. Bolts (Zinc Plated) :
c/w class 8 Nut, Flat Washer & Spring Washer
M20 x 60mm, M16 x 50mm

ZINC PLATED WEDGE ANCHOR
JAM-W M8-10/75mm
JAM-W M16-100/215mm

JAM M5.5 (#12) x 25mm yellow Zinc Plated hex. self-drilling screw with washer

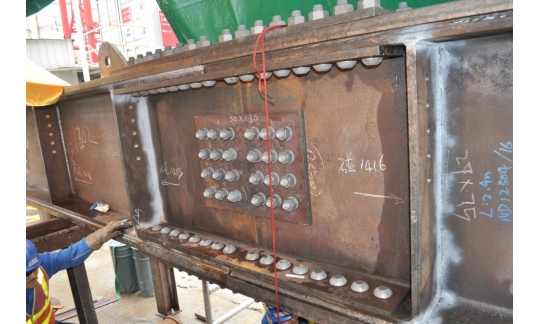

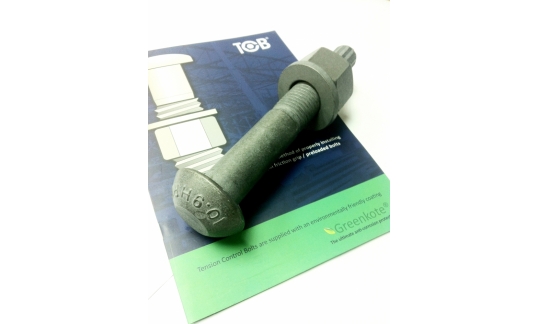

TCB 10.9 HIGH STRENGTH TENSION CONTROL
BOLT C/W 2H HEX. NUT & HARDENED
FLAT WASHER
M36 x 190mm
M36 x 170mm
M30 x 130mm

Date: 2010 09 - 2012 06
