JAM Bolts & Holding Down Bolts

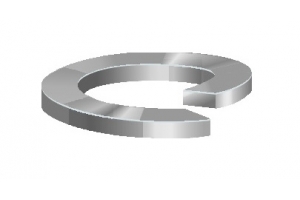

Steel Spring Washer

Ordering example : hot dip galvanized M16 spring washer (item no.: 4054116000)
Steel
Material Standard BS 1449 Part 2:1983
Specification DIN 127B
Finishing hot dip galvanized to ISO 1461:1999 (40541) zinc plated to ISO 4042:1999 (40531)

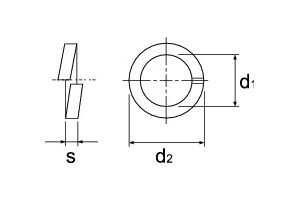

    • Diameter (Spring Washer)
    • d1 (inside diameter) / mm
    • d2 (outside diameter) / mm
    • s (thickness) / mm
    • M3
    • 3.1
    • 6.2
    • 0.8
    • M4
    • 4.1
    • 7.6
    • 0.9
    • M5
    • 5.1
    • 9.2
    • 1.2
    • M6
    • 6.1
    • 11.8
    • 1.6
    • M8
    • 8.1
    • 14.8
    • 2
    • M10
    • 10.2
    • 18.1
    • 2.2
    • M12
    • 12.2
    • 21.1
    • 2.5
    • M16
    • 16.2
    • 27.4
    • 3.5
    • M20
    • 20.2
    • 33.6
    • 4
    • M24
    • 24.5
    • 40
    • 5
    • M27
    • 27.5
    • 43
    • 5
    • M30
    • 30.5
    • 48.2
    • 6
    • M33
    • 33.5
    • 55.2
    • 6
