MKT FIXINGS (Germany)

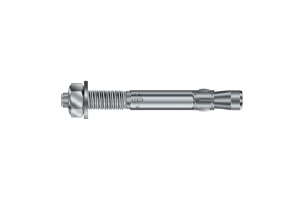

Wedge Anchor B (A4/316 Stainless Steel)

A4/316 Stainless Steel

Stainless steel A4/316
DIBt Approval for non-cracked concrete



Description
The Wedge Anchor B A4 is the stainless steel version of Wedge Anchor B. It offers excellent load bearing capacities, small anchor spacings and edge distances. Wedge Anchor B HCR (high corrosion resistant) in stainless steel
1.4529 on request.


Applications
Indoor and outdoor medium to heavy duty applications:

Suspended ceilings (M6-M10), metal constructions, channels,brackets, supports, cladding systems, hand rails, cable trays, ducts.



Range of concrete quality: C20/25 - C50/60

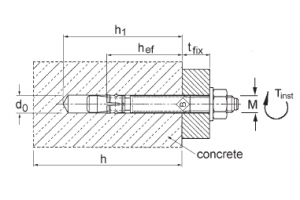

Installation of MKT B A4 Wedge Anchor




1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Drive anchor carefully with hammer into hole until nut and washer are flush with fixture.
4. Install fixture and tighten anchor to specified torque. If the marking in the threaded part of the anchor bolt becomes visible, do not load anchor.
Refer to approvals and schedules for design and building code compliance.
